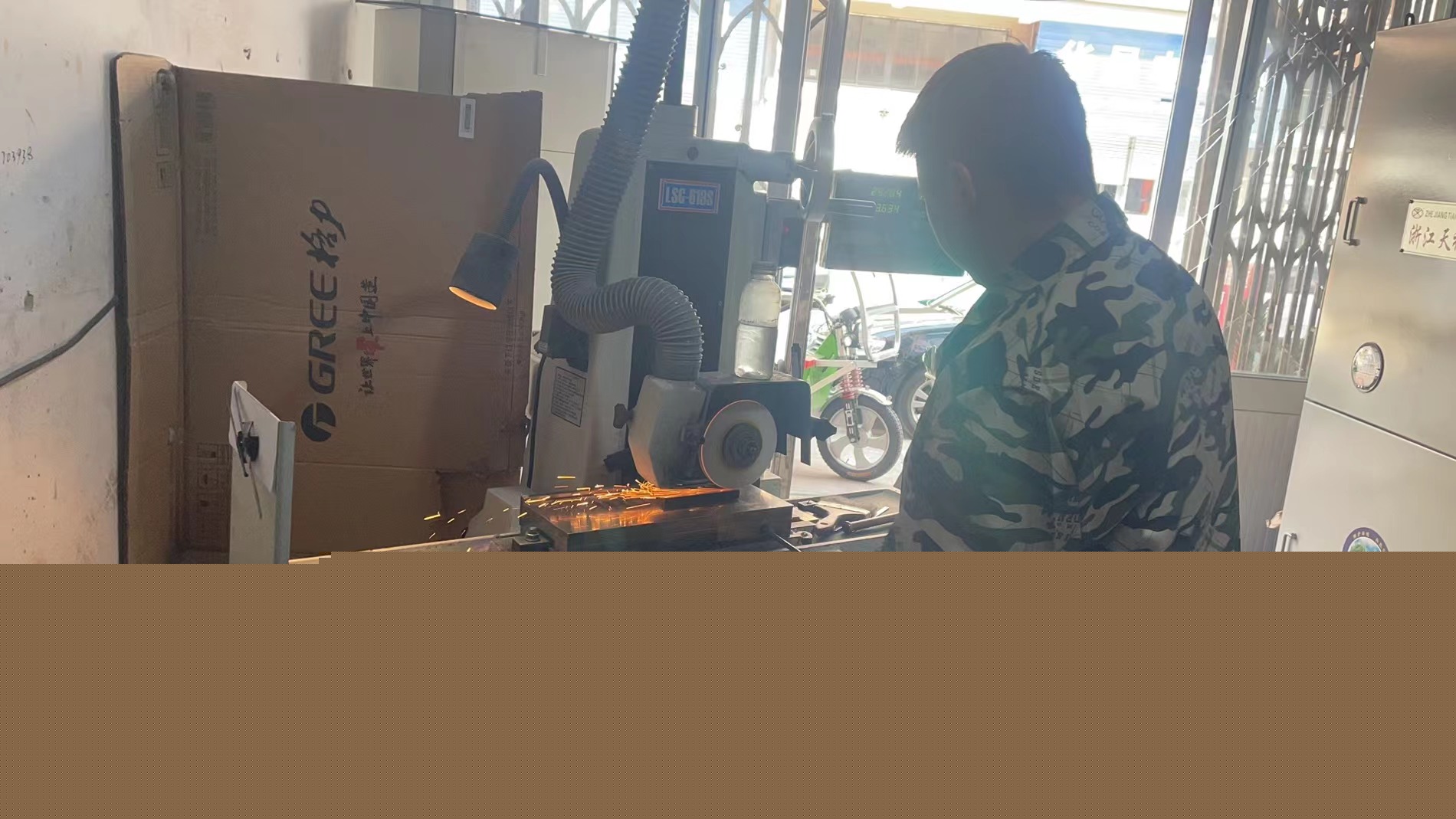

The accuracy of the process grinder refers to the degree of deviation between the workpiece it processes and the design requirements, and is an important indicator to measure the quality of grinding processing. Here's a detailed analysis of the accuracy of a process grinder:
First, the range of accuracy of the process grinder
The machining accuracy of the process grinder can usually reach 0.01mm to 0.0005mm, and it is also said that its machining accuracy is generally between 0.002mm ~ 0.005mm. This range of accuracy is influenced by a number of factors, including the geometrical accuracy of the grinding machine itself, the accuracy of the spindle rotation, the accuracy of the feed system, as well as the selection of process parameters, the condition of the grinding wheel and the clamping of the workpiece.
2. Factors affecting the accuracy of process grinders
The accuracy of the grinding machine itself: it is the primary factor that determines the machining accuracy. Including the geometric accuracy of the machine tool (such as the straightness of the guide rail, the flatness of the table, etc.), the rotation accuracy of the spindle and the accuracy of the feed system. The accuracy of these factors has a direct impact on the dimension, shape and position accuracy of the workpiece after machining.
Grinding process parameters: Machining accuracy is also crucial. For example, too high grinding speed may cause burns on the surface of the workpiece, affecting the machining quality; However, if the feed and grinding depth are too large, it is easy to cause dimensional errors and increase in surface roughness.
Grinding wheel conditions: As the main tool for grinding processing, the grinding wheel needs to be reasonably selected according to the workpiece material and processing requirements for its particle size, hardness, bonding agent and other characteristics. In addition, the dressing of the grinding wheel is also crucial, and regular dressing of the grinding wheel can maintain its sharpness and shape accuracy, thus improving the machining accuracy.
Workpiece clamping method: improper clamping may lead to deformation of the workpiece during the machining process, which will affect the machining accuracy. Therefore, it is necessary to select a reasonable clamping method and ensure accurate positioning to achieve high-precision machining.
Motion stability of the grinding machine: When the moving parts such as the grinding wheel frame of the grinding machine worktable are continuously moved at a small period of time or at low speed, the phenomenon of uneven movement may occur, which is called crawling. When this phenomenon occurs in the grinding machine, the feed in the grinding process will be uneven, affecting the surface roughness of the grinding workpiece.
Thermal deformation of the grinding machine: the heat source inside the grinding machine is unevenly distributed, the heat generated by each part in the movement is also different, the influence of the external heat source on each part of the machine tool is not the same, and the thermal expansion coefficient of the parts and components is not the same due to different materials, resulting in different trace deformation of each part of the machine tool, so that the original geometric accuracy of the machine tool decreases, thereby affecting the machining accuracy of the workpiece.
The stiffness of the grinding machine: refers to the ability of the grinding machine to prevent deformation of its components when it is subjected to external force (grinding force). The smaller the deformation of the component with the same grinding force, the greater the stiffness. Conversely, if the deformation of the part is large, the stiffness of the part is small. The magnitude of these deformations destroys the static original geometric accuracy of the grinding machine and will cause machining errors in the workpiece.
3. Measures to improve the accuracy of process grinders
Optimization of machining technology: Machining efficiency and accuracy can be improved by rationally selecting grinding parameters (such as speed, feed rate, grinding depth, etc.), as well as optimizing other process parameters in the grinding process.
Choose the right abrasives and lubricants: Different abrasives and lubricants have a certain impact on the machining accuracy, and the appropriate type and brand should be selected according to the processing needs.
Control the temperature and environment of the machine tool: In the process of processing, it is necessary to pay attention to controlling the temperature of the machine tool and maintaining a constant temperature environment to reduce the impact of thermal deformation on accuracy. At the same time, keeping the machining environment clean and stable is also the key to improving accuracy.
Regular maintenance of machine tools and abrasives: Regular maintenance of machine tools and abrasives, including cleaning, lubrication, adjustment and replacement of worn parts, can maintain their stability and accuracy and extend their service life.
In summary, the accuracy of a process grinder is affected by a combination of factors. In order to improve the machining accuracy, it is necessary to comprehensively optimize and control the accuracy of the grinding machine itself, the selection of process parameters, the condition of the grinding wheel and the clamping method of the workpiece.
